PlantUML can be used to create several UML diagram types from a simple text file description. It can run from command line, editor (e.g. VSCode plugin), browser (e.g. Chrome browser) or online service via browser.

• For standard UML diagrams (class diagrams, sequence diagrams) auto-generation is a good option.
• For C4 architecture (Context, Container, Component, Class), it is ideal and C4 templates exist.
• For complex non-UML diagrams, where the arrangement of parts is important to convey information, it may be better to just draw a simple Box-and-Line diagram.

Goals

1. Bring architecture closer to the code so that it is in sync with the code:

   1. code is developed consistent with the architecture
   2. architecture diagrams and description is current and correct
2. Remove the initial friction to create diagrams - by auto-generating them
3. Diagram source text files are version-controlled in GIT in relevant source code repo
4. Consistent diagrams - that can be easily interlinked

PlantUML Examples

https://real-world-plantuml.com/ gives many examples of PlantUML diagrams.

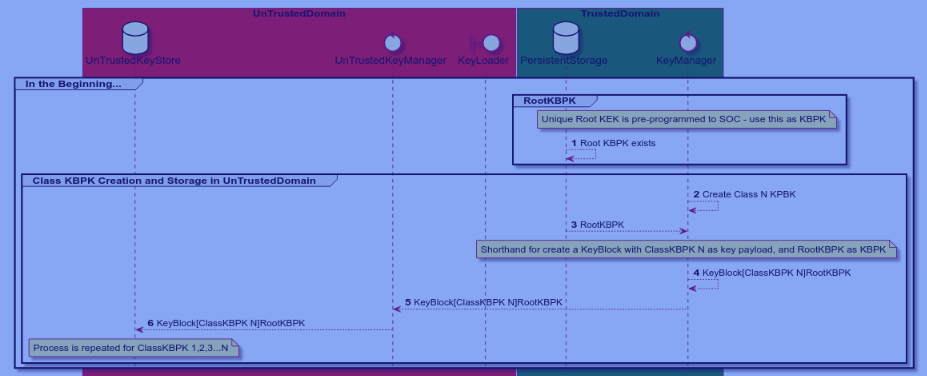

example of a sequence diagram I created

VSCode PlantUML Extension

VSCode Plantuml Extension makes it easy to create and edit plantuml diagrams. It includes a real-time preview.

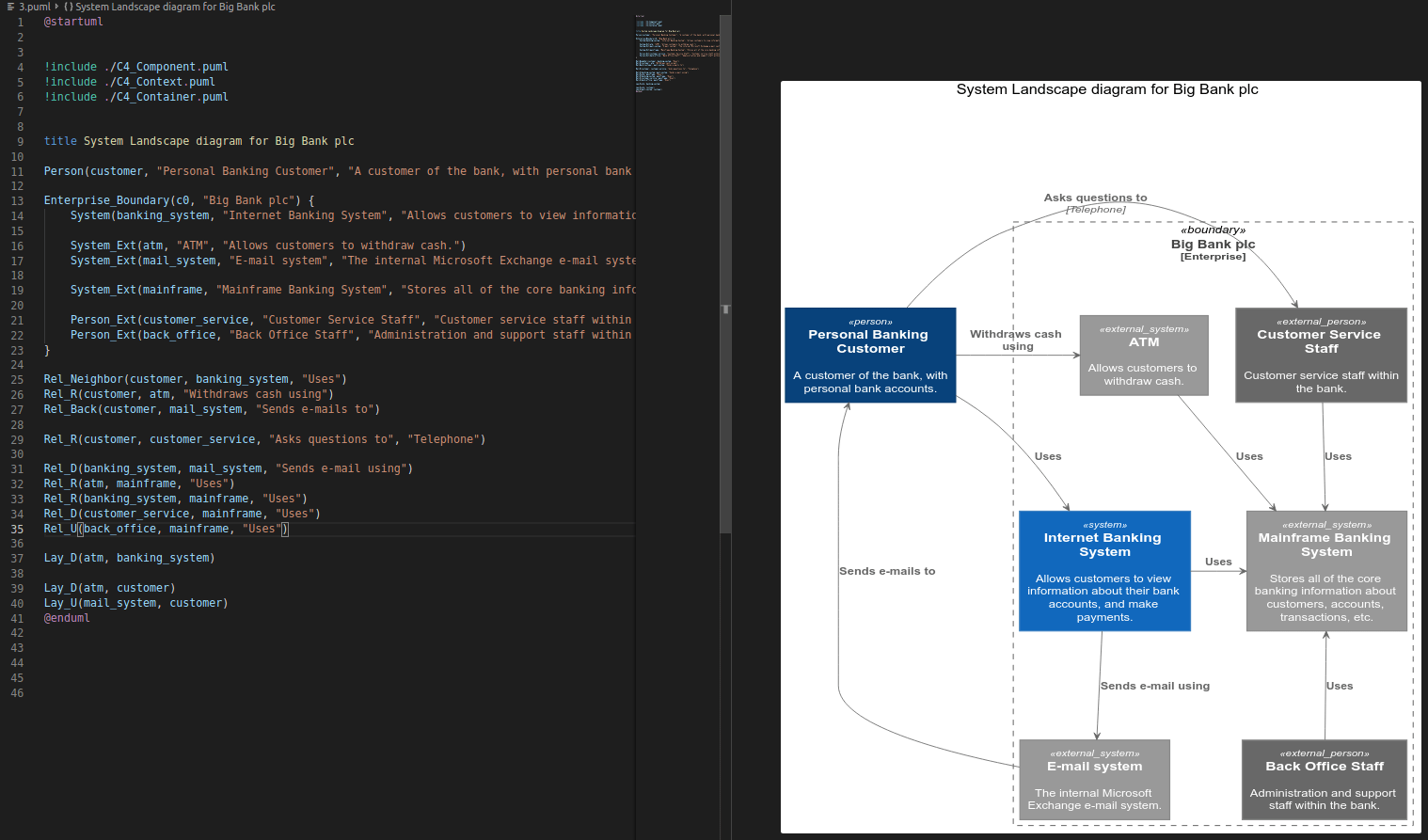

Plantuml for C4 Architecture

C4 templates exist to create PlantUML diagrams according to the C4 template.

Use Local Copy of C4 Templates

For each of the template files C4Context.puml, C4Context.puml, C4_Component.puml comment out the includeurl, and uncomment the include, directive.

' !includeurl https://raw.githubusercontent.com/RicardoNiepel/C4-PlantUML/master/C4_Container.puml
' uncomment the following line and comment the first to use locally
!include C4_Container.puml

Add C4 Snippets to VSCode Editor

VSCode supports snippets that predict words as you type. VSCcode Snippets for C4 can be installed per See https://github.com/RicardoNiepel/C4-PlantUML#snippets-for-visual-studio-code

PlantUML

Some standard libaries are available for PlantUML. See http://plantuml.com/stdlib for what is supported in official release of PlantUML.

Plantuml for AWS

Plantuml for AWS uses the icon set from AWS and converts these to sprites for use with PlantUML.

git clone git@github.com:milo-minderbinder/AWS-PlantUML.git

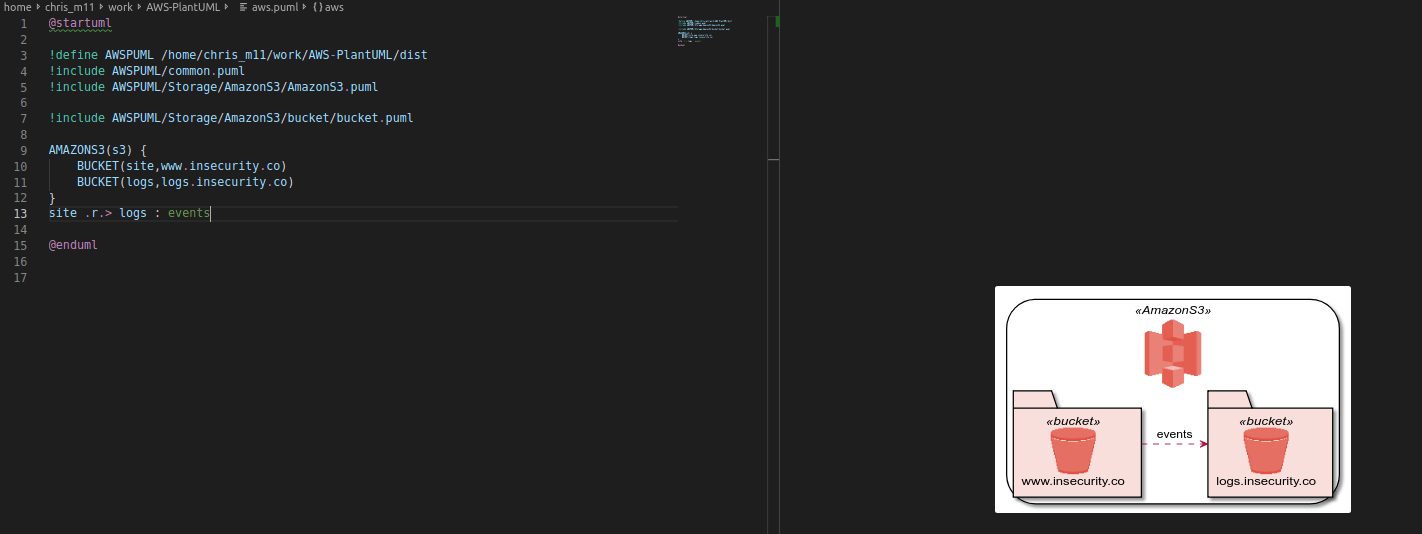

Simple Example

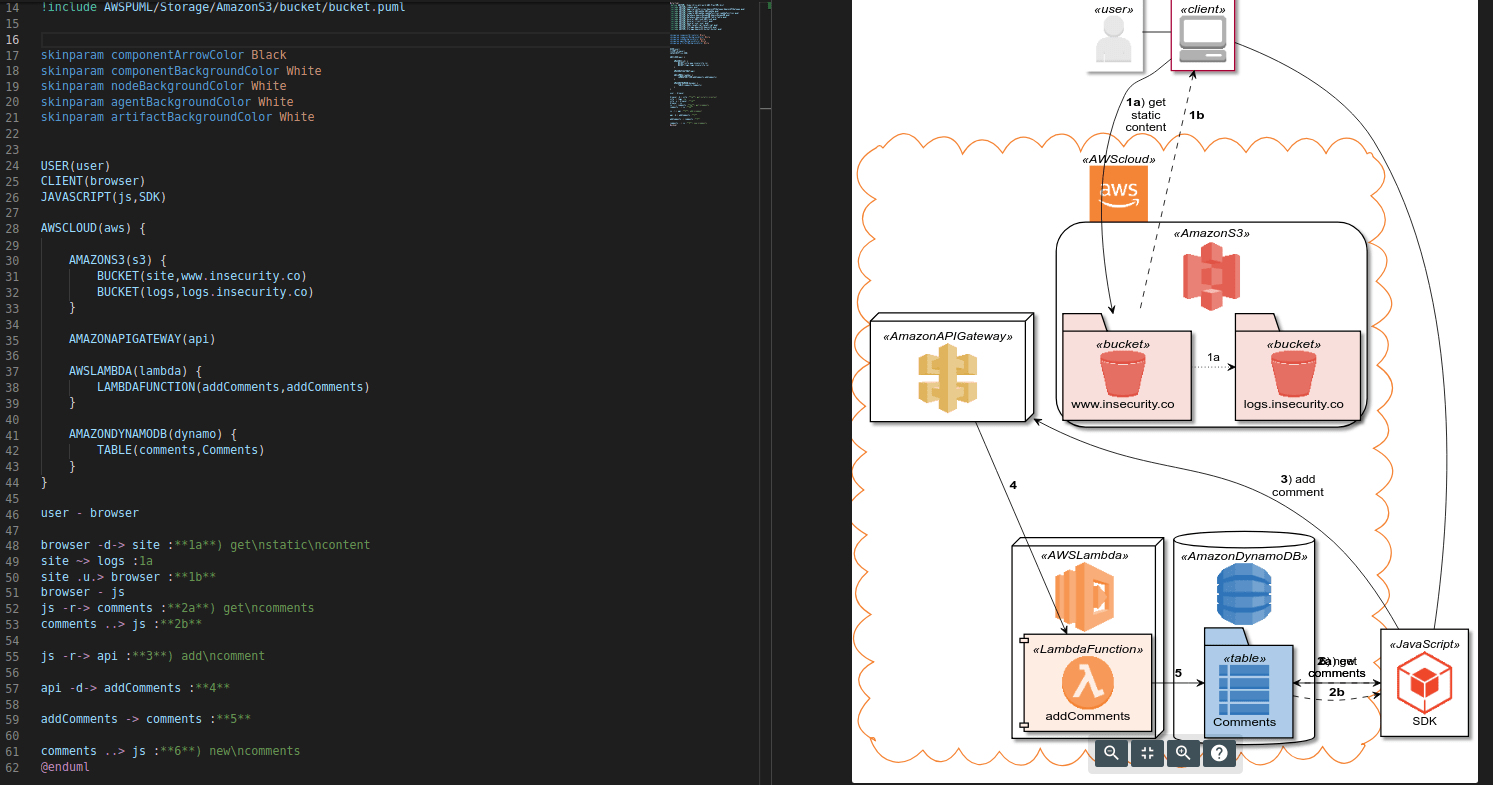

More Complex Example

PlantUML Sprites

PlantUML supports sprites (small graphic elements). Given we want to make diagrams communicate quickly and clearly, using sprites (rather than just boxes) is very effective.

PlantUML Sprite Examples

Some good examples of where PlantUML Sprites are used:

• Plantuml for AWS
• https://github.com/rabelenda/cicon-plantuml-sprites/tree/master/sprites that includes Devicons, Material, Weather icons.

PlantUML Create a Sprite

It's easy to create your own sprites from existing icons.

Start with a 100x100 person icon png

Convert to sprite of different resolutions as follows

Download plantuml.jar

 java -jar plantuml.jar -encodesprite 4 images/C4person100.png > C4person4.sprite
 java -jar plantuml.jar -encodesprite 16 images/C4person100.png > C4person16.sprite
 java -jar plantuml.jar -encodesprite 8 images/C4person100.png > C4person8.sprite

Create Diagram with our Sprites

See source code

@startuml
sprite $C4person100Small [16x16/16] {
0000004774000000
0000067777600000
0000377777720000
0000477777740000
0000377777730000
0000077777600000
0244467777644420
3777777777777773
6777777777777776
7777777777777777
7777777777777777
7777777777777777
7777777777777777
7777777777777777
5777777777777774
0477777777777640
}

sprite $C4person100Big [100x100/16] {
0000000000000000000000000000000000000000000013456666543100000000000000000000000000000000000000000000
# removed rest of sprite here for clarity

Bob : <$C4person100Small> Small
Alice : <$C4person100Big> Big

Alice -> Bob
@enduml

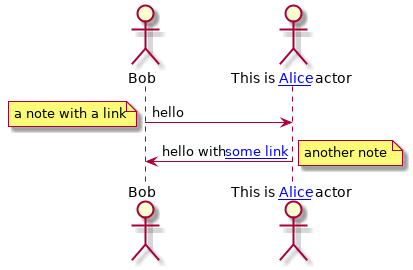

PlantUML HyperLinks

PlantUML supports hyperlinks in output SVG images. This allows diagrams to be linked together, and for a user to easily navigate by clicking around per Shneiderman's mantra:

Overview first, zoom and filter, then details-on-demand

@startuml
actor Bob [[http://plantuml.com/sequence-diagram]]
actor "This is [[http://plantuml.com/sequence-diagram Alice]] actor" as Alice
Bob -> Alice [[http://plantuml.com/index]] : hello
note left [[http://plantuml.com/index]]
  a note with a link
end note
Alice -> Bob : hello with [[http://plantuml.com/index{Tooltip for message} some link]]
note right [[http://plantuml.com/index]] : another note
note left of Bob
' You can use [[http://plantuml.com/index links in notes]] also.
end note
@enduml

References

1. http://plantuml.com/ homepage
2. https://real-world-plantuml.com/umls/4619683198140416 is a PlantUML showcase
3. https://www.planttext.com/ free online site where you can copyNpaste the text description to auto-generate a diagram
4. https://www.websequencediagrams.com/ free online site where you can copyNpaste the text description to auto-generate a diagram
5. https://www.npmjs.com/package/c4builder NPM package using autodoc and C4 template
6. https://codurance.com/2019/03/17/just-enough-technical-documentation/ Good article that makes reference to a good book "Agile Modelling - Scott Ambler"
